1.436W LED modules for backlight use 4 pcs 3535 SMD LED, 12V

LED modules for backlight

Injection Module adopts ABS material as its shell. There is transparent epoxy resin around the lights with good insulativity. Comprehensive performance is good with excellent electrical performance, impact strength and wear resistance, chemical resistance, moisturecontent , shaping and excellent machining technology. It is completed through injection in one time. It solves the problem that nonuniform sealing, dirty shell and LED stand out of the glue etc. It is simple artwork with good appearance and short lead time as well. It has good cold resistant available for -20~40?.

There are 3M adhesive tape and screws for customers to fix it in easy installation.

Product Feature:
Consume wattage: 1.436 Watt
Beam degree: 120 degree
Input voltage: 12V DC, Current 0.1197A
LEDs: 4 pcs super bright SMD 3535 LED
Light output: 58.67 lumens
CRI Ra>80
Material : ABS, Made by Plastic injection machine with simple technology, beautiful shape and shorter production time.

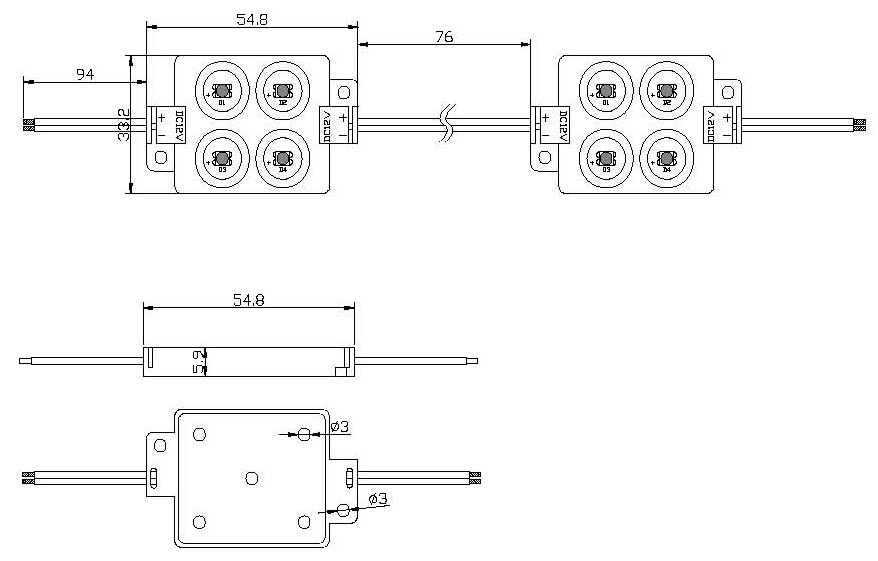

Dimension: Large following image to see the drawing;
Availabale color: Red,Green,Blue,Yellow,Pure White,and RGB full color;
Waterproof IP Rank: Indoor use only

Application:  Backlighting, advertisement, indoor or outdoor decoration, partial lighting,Channel letters: face and halo. Internally Illuminated Sign Cabinets. Architectural Lighting. Accent and Cove Lighting

1. Made by Plastic injection machine with simple technology, beautiful shape and shorter production time
2. The light feet covered by transparent epoxy resin around LEDs with excellent insulation
3. Good impact strength, has excellent eletrical properties, abrasion resistance, chemical resistance and chromaticity
4. Sealing glue evenly, clean cover

Warning
Please do not connect power supply when the light is still in box.  Please do not connect high voltage before the installation, and make sure that the fixture connectthe earth. Change the protection cover completely if it was broken. Pay attention to anti-fire, anti-electricity and anti-shake.
Please kindly read the instructions before installation, and keep it well for your future reference.

Notice
Caustic or dissolvent chemicals may damage the protection crust.  Normal working temperature : -35?~40?, if overrun the range, it will effect the lifespan of lamp. Storage temperature is -25~60?
