Cree led chip 12v, Cree led chip 6v, XGP70 Cree led chip 12v 30 watt PCB board DC 12V 6V

Cree led chip 12v, Cree led chip 6v, XGP70 Cree led chip 12v 30 watt PCB board DC 12V 6V

1. LED PCB board light source Aluminum plate base boards require both a heatsink and cooling fan for proper functioning, with aluminum and coper housing bodies being ideal options as heatsinks.
2. Verify the wire and LED welding temperatures are under 85 DegreeC for proper welding operations

Size 7 x 7 mm
Product Options 6 V, 12 V
High-CRI
Maximum Drive Current 4.8 A (6 V) 2.4 A (12 V)
Maximum Power 32 W
Maximum Light Output 4022 Im
Maximum Efficacy at Binning Conditions 150 lm/W
Typical Forward Voltage  5.8 V White @2100 mA (6V) 11.6 V White @ 1050 mA (12 V)
Maximum Reverse Voltage -5 V
Viewing Angle  120°
Maximum Junction Temperature 150 °C

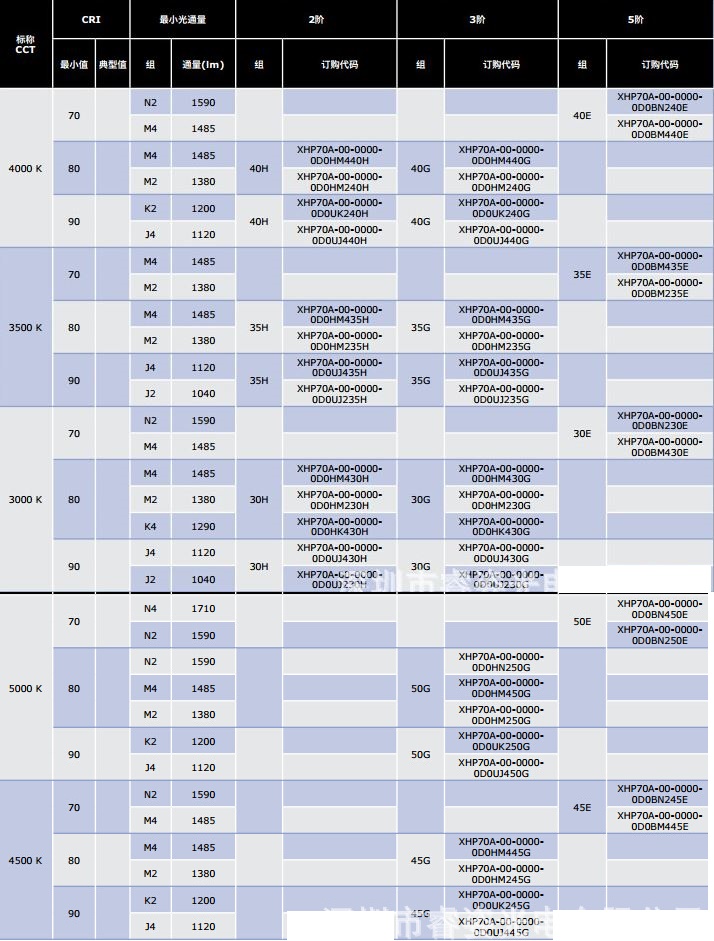

Binning 85°C,  ANSI, 2-3- and 5-Step EasyWhite®
Maximum ESD Withstand Voltage  8000 V (HBM per Mil-Std-883D)
Reflow Solderable Yes - JEDEC J-STD-020C-compatible
REACH-Compliant Yes
RoHS-Compliant Yes
UL-Recognized Yes - Level 4 Enclosure Consideration
