6W LED light PCB board using 9V High Volt 2835 SMD Chip to parallel LEDs directly Avoid whole light does not work

LED light PCB board, 12V constant voltage PWM dimmable LED light for DC dimmer. 12V LED light using 9V High Volt 2835 SMD Chip to parallel LEDs directly, Avoid one LED that is bad and the whole light does not light up.

3 LEDs are wired in parallel to share a common current-limiting resistor as shown in Figure. Than all LEDs (with common resistor) are wired in parallel to Power supply.

LEDs in parallel using High Volt 2835 SMD Chip, We can expect some variation in forward current from LED to LED. The variation might be reduced by using LEDs from the same production lot but even the manufacturers don’t rely on this and use “binning” to grade LEDs into matched lots for sensitive applications.

High Volt 2835 SMD Chip 1W 130-140lm has option  3V 6V 9V 18V 36V.
High bright compact design, and industry standard smd package 2835 0.2W 0.5W 1W with various volt choices 3V 6V 9V 18V 36V to meet a wide range of various lighting application requirements. High bright compact design widely used in various lighting applications.

Please contact us If you need 24V 28V 32V 36V 48V LED light using High Volt 2835 SMD Chip to parallel LEDs directly.

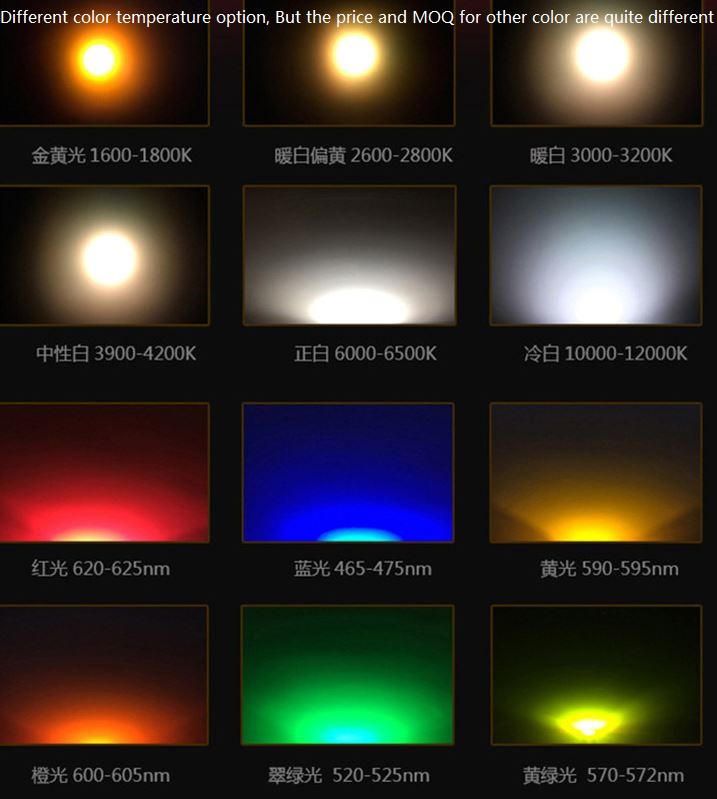

Below listed are Different color temperature option, But the price and MOQ for other color are quite different, Please contact us.
Golden light 1600-1800K
Warm white to yellowish 2600-2800K
Warm white 3000-3200K
Neutral white 3900-4200K
Cool white 6000-6500K
Cool white 10000-12000K
red color 620-625nm
blue color 465-475nm
Yellow color 590-595nm
Orange 600-605nm
Emerald green 520-525nm
Yellow-green light 570-572nm

Chip leds: 6 pcs
6 Connect in Parallel
Size: 33mm diameter
Color Rendering Index: Ra80
Color Temperature:
Warm White 2800-3200K, Cool White 6000-6500K, Nature white 4000k~4500k
Beam angle: 120 degree
Lifespan:50,000 hrs Housing
material: Aluminun
Material thickness: <1.5mm
Certificate: CCC CE and Roh
Notes:
1. The led lighting board can directly work on DC 12V. Please contact us If you need 24V 28V 32V 36V 48V LED light using High Volt 2835 SMD Chip to parallel LEDs directly.
2. LED PCB board lighting source Aluminum plate base board must be added with a heatsink or cooling fan. Most Aluminum and coper housing body is a good heatsink.
3. Ensure that the wire and LED welding temperature is below 85 °C Celsius
