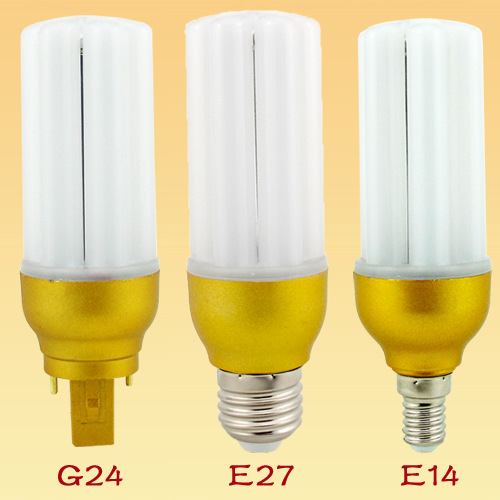

7W 40MM U shape CFL replacement bulb G24 LED bulb 2 pin 4 pin, Dimming dc led lights, led bulb for extractor pwm voltage

(image for) 7W 40MM U shape CFL replacement bulb G24 LED bulb 2 pin 4 pin, Dimming dc led lights, led bulb for extractor pwm voltage
7W 40MM U shape CFL replacement bulb G24 LED bulb 2 pin 4 pin, Dimming dc led lights, led bulb for extractor pwm voltage
  • Model: E27B22G24E14E12B15E26-U7W-LXDD
  • Shipping Weight: 0.25 lbs

(image for) Ask a Question

$4.50

Please Choose:

The light output Color Temperature and Angle

Color Temperature






Operation Voltage and Frequency














Base or Socket of Lamp





















Qty Discounts Off Price
10-39
$4.50		 40-99
$4.28		 100-199
$4.05		 200-299
$3.83		 300-399
$3.60		 400+
$3.38

* Discounts may vary based on options above
Min:  10
Add to Cart:

7W  LED U shape CFL replacement bulb, CFL led retrofit, Led bulb for pwm output voltage 12v, 24V, 36V, 48V, 60V. G24 led bulb, G24 led bulb 2 pin, G24 led bulb 4 pin, GX23 GX24 GU24 G23 G24 LED E27 E14 Dimension: L:132mm W:40mm H:40mm
Specification :
1.Power Consumption: 7 Watt using 72 pcs 2835 LED chip
2.Multi Voltage option: Dimming dc led lights, led bulb for extractor pwm voltage DC 12V 24V 36V 48V 60V AC 110V AC 220V
4.Light Base option: E27/B22/G24/E14/E12/B15/E26,  G23, GX23. G24, GX24, GU24 option.
5.Color temperature: 3000-3500K, 4500K, 6000-6500K option, please choose from blow listed
6.Power Factor:larger than 92%, about 98%. Working Temperature:smaller than 68 centigrade degree,
7.Working environmental Temperature -30 degree to +40 degree,
8.Luminous Efficiency,90 LM/W on average.
9.Lumen Flux: 630 lm for cool white.
10.View Angle:360 degree.
11.Materials of lathed aluminium and ABS anti-fire.
12.CE & RoHS Certificate.Two years warranty.
13. Lifespan :larger than 30,000 Hours.
14. CRI >80

Warning for applications:
For the Integrated CFLs, You just plug in LED bulbs. For the Non-integrated electronic ballast CFLs, If it is electronic ballasts, You must remove the ballasts and then plug in the LED replacement bulb. Otherwise, The LED bulb will be fault. But if it is magnetic ballast (means that with starter), You must remove starter, You can remove ballast either not remove ballast, But if you remove ballast, The efficiency will be more better and saving energy.

1.No ballast is needed. Any ballast should be removed before installation!
2.The lamp is not water-proof.
3.The socket temperature peak is 65 degree, do not touch the aluminum or any part while working.
4.The product cannot be discarded into garbage can directly, necessary measures should be done for full recycling.
5.All installation, maintenance, dismantling should be done by licensed technician.
This product works as a replacement of traditional energy saving plug-in tube lamp. It can be widely used for hotel, restaurant, commercial & home lighting etc.
Click here to see How to use LED lights replace compact fluorescent lamps For the Integrated CFLs, You just plug in LED bulbs. For the Non-integrated electronic ballast CFLs, If it is electronic ballasts, You must remove the ballasts and then plug in the LED replacement bulb. Otherwise, The LED bulb will be fault. But if it is magnetic ballast (means that with starter), You must remove starter, You can remove ballast either not remove ballast, But if you remove ballast, The efficiency will be more better and saving energy.
