9W RGB LED lighting source Aluminum plate base Red Green Blue

9W RGB LED lighting source Aluminum plate base Red Green Blue

Power: 9W

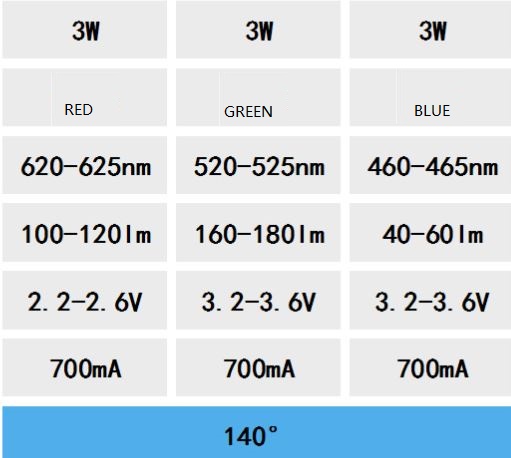

Luminous Flux: see photo
LED Chip: RGB 3x3W
Chip leds: 1 pc 9 watt with red green blue
Size:  see photo  20X20MM
Color Rendering Index: Ra80
Efficiency: >0.9
PF: >0.8
Color Temperature:
Beam angle: 140 degree
Lifespan:50,000 hrs Housing
material: Aluminun
Material thickness: 1.5mm
Certificate: CCC CE and Roh
Notes:
1. The led lighting board need connect to suitable driver for it, It can not direct to Mains voltage AC 110V AC220V AC 277V or DC12V 24V 36V 48V 60V alone.
Driver requirement: input Voltage: 2.2-3.6V 700mA see photo
2. LED PCB board lighting source Aluminum plate base board must be added with a heatsink or cooling fan. Most Aluminum and coper housing body is a good heatsink.
3. Ensure that the wire and LED welding temperature is below 85 °C Celsius
