300W IGBT dimmer  reverse phase dimmer wall switch CE approval

300W IGBT Dimmer reverse phase dimmer (call as RFC IGBT Dimmer) wall switch CE approval
IGBT dimming has been used for dimming methods of incandescent lamps and energy-saving lamps earlier. It is also the most widely used dimming method for LED dimming.

IGBT Dimmer:
IGBTs (Insulated Gate Bipolar Transistors) have the ability of being turned off anytime during the phase (TRIACs and SCRs can only be turned off during the zero-crossing of the waveform). Therefore, IGBT Dimmer is complicated, It can be phase controlled dimmer, sine wave dimmer.
a.)FPC IGBT Dimmer and RFC IGBT Dimmer, IGBT Phase controlled dimmer (advanced types of phase control dimmers):
All of Triac dimmer have one thing in common: the phase control waveform is far from ideal for dimming them. In many cases the load will perform poorly; in extreme cases the load (and possibly the dimmer) will be damaged. In the last decade, more advanced types of phase control dimmers have been produced using a type of power semi-conductor called an IGBT.
IGBT Phase controlled dimmer can be "Forward phase controlled" dimmer call as FPC IGBT Dimmer and "Reverse phase controlled" dimmer call as RFC IGBT Dimmer.

Applying the tangential principle can reduce the effective value of the output voltage, thereby reducing the power of ordinary loads (resistive loads).

The thyristor dimmer has the advantages of high adjustment accuracy, high efficiency, small size, light weight, and easy remote control, etc., and it is dominant in the market.

RFC IGBT Dimmer are higher work efficiency, stable performance, and low dimming cost.

Using MOSFET instead of IGBT or TRIAC completely eliminate the EMI.
Compatible with EMC standard EN55015: 2013 EN61547: 2009 EN61000-3-2: 2014 EN61000-3-3: 2013.
Compatible with LVD standard EN61347-2-11: 2002 EN61347-1: 2015 EN62493: 2015
CE, EMC, LVD certificated.
Perfect for residential and Commercial indoor dry wall mount applications up to 200 watts of most dimmable CFL or LED lights, Led ceiling panel, high bay ufo, tube light fixtures, upto 300 watt incandescent bulb.

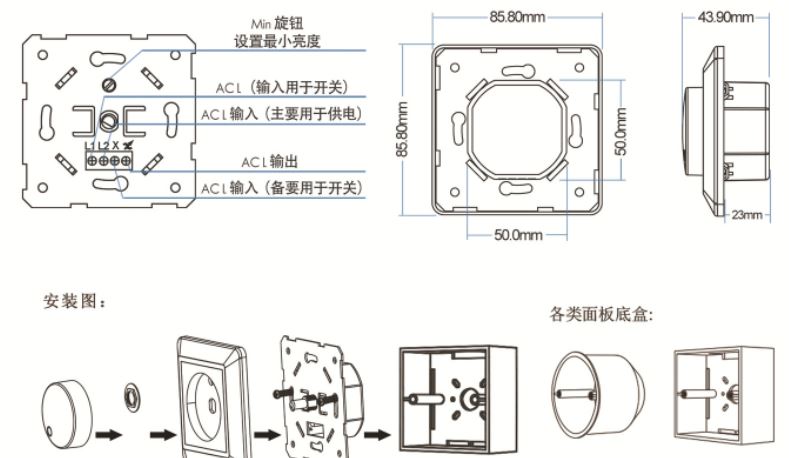

Product Dimensions ‎86 x 86mm
Country of Origin    ‎China
Color    ‎White
Finish    ‎White/gray/ivory
Power Source    ‎Corded Electric
Voltage    ‎AC 220~250 Volts
Switch Style    ‎Push buttom
