Capacitive Touch dimmer switch for led lights 5V PWM Dimming

(image for) Capacitive Touch dimmer switch for led lights 5V PWM Dimming
Capacitive Touch dimmer switch for led lights 5V PWM Dimming
  • Model: click-touch-dimmer-5v-1688zsha
  • Shipping Weight: 0.05 lbs

(image for) Ask a Question

$2.80

Min:  5
Add to Cart:

Touch dimmer switch for led lights 5V PWM Dimming
Capacitive Touch Dimmer PWM Control LED Dimmer Switch
2.4-5V for Light Strip, Indoor Table Lamp, LED Lighting Dimming
Touch dimmer has a wide range of applications and can control LED modules, light bars, indoor table lamps, LED lighting dimming, DIY light dimming, etc.
It has good resistance to power interference and mobile phone interference. In close range and multi-angle mobile phone interference, touch sensitivity and reliability are not affected.
The touch function of the dimmer can be realized under the isolation and protection of the medium (such as glass, acrylic, plastic, ceramic, etc.).
Installation: No direct contact with copper foil, no dimming through acrylic glass or plastic over 3mm.
The capacitive touch dimmer can adjust the brightness as needed. Wide selection range and simple and convenient operation.
Operating Voltage    5.0 volts
Switch Type    Touch Switch , Dimmer Switch
Specification:
Item Type: Capacitive Touch LED Dimmer
Voltage: 2.4-5V
Maximum Output Current: 2000MA

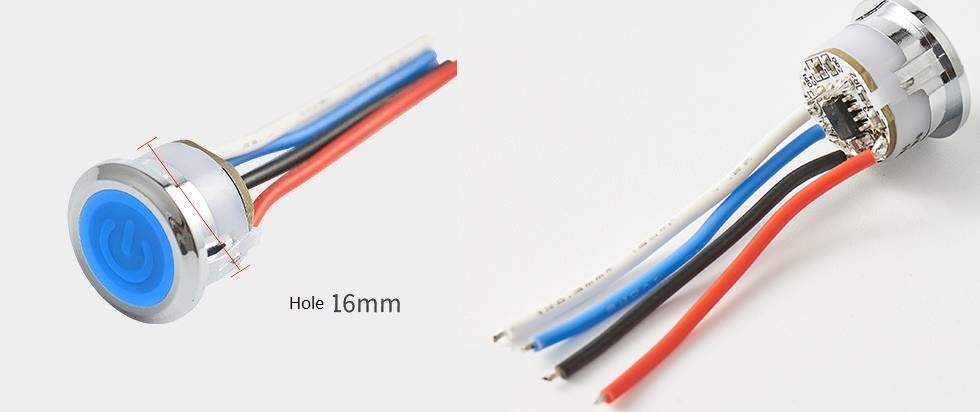

Hole: 16mm / 0.63in


Instructions:
a) Short Touch (touch duration is less than 550ms)
Can achieve the brightness 30%-60%-100%-OFF control of the light. The initial brightness of the light is fixed at 30% of full brightness.
b) Long Touch (touch duration is greater than 550ms)
Can achieve stepless brightness adjustment of the light. When touch for long time, the brightness of the light gradually increases. After reaching the maximum brightness, Touch again Can achieve the light OFF.

c)LED Indicator lights in blue color when turn on, And off if non-touch.
