RF Wall LED Touch Panel Master Controller for dali compatible light fittings, dali light system

(image for) RF Wall LED Touch Panel Master Controller for dali compatible light fittings, dali light system
RF Wall LED Touch Panel Master Controller for dali compatible light fittings, dali light system
(image for) RF Wall LED Touch Panel Master Controller for dali compatible light fittings, dali light system
RF Wall LED Touch Panel Master Controller for dali compatible light fittings, dali light system
(image for) RF Wall LED Touch Panel Master Controller for dali compatible light fittings, dali light system
RF Wall LED Touch Panel Master Controller for dali compatible light fittings, dali light system
(image for) RF Wall LED Touch Panel Master Controller for dali compatible light fittings, dali light system
RF Wall LED Touch Panel Master Controller for dali compatible light fittings, dali light system
  • Model: DALI-controller-ZHCSUN
  • Shipping Weight: 0.56 lbs

(image for) Ask a Question

Starting at: $49.99

Please Choose:

Control or Remote method, Sensor





maximum characters allowed


Min:  2
*Mixed OFF
Add to Cart:

DALI control panel for the DALI light System. RF Wall LED Touch Panel Master Controller for dali compatible light fittings, dali light system.

This is a series of 1-5 colour DALI touch master panels for controlling lighting control systems and DALI DT6/DT8 devices for use in a wide range of schools, retail, hospitals and offices.

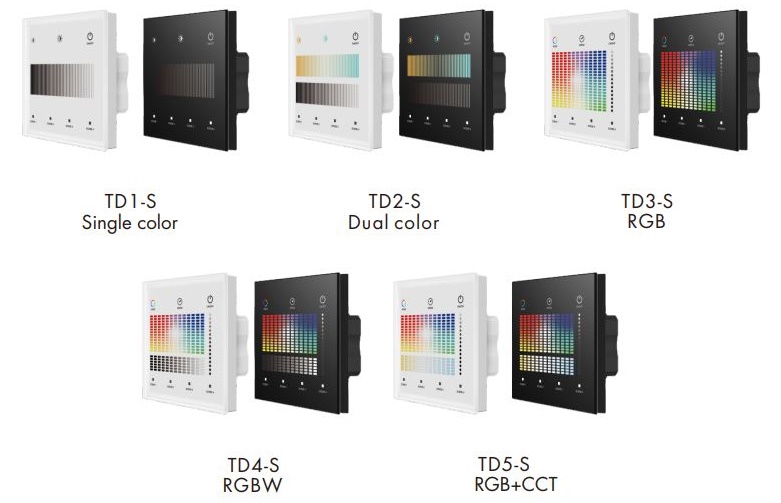

5 model option: TD1-S one chanel for one color, TD2-S two chanels  for 2 color (cool white +warm white for CCT control), TD3-S three chanels for RGB control, TD4-S four chanels for RGBW control, TD5-S five chanels for RGB+CCT control, please make a comments for your requirement when you order it.

1 DALI address, support DT6 dimming, DT8-TC color temperature, DT8-RGB or DT8-RGBW.
Powered by DALI bus or 24VDC.
DALI-2 certified, in accordance with DALI standard protocol IEC 62386-101,  102, 208 and in compliance with DALI products from other international incorporation.
Encoding switch select addresses, support 4 control modes: scene, grouping, unicast and broadcast.
RF remote control option: Non-remote controller, Match with RF 2.4G single zone or multiple zone remote control optional.
Ultra sensitive high strength glass touch panel with touch color slide.
Smooth and accurate color adjustment by touching the color slide.
4 scenes memory.
Touch keys with LED indicator.
White & Black glass panel available.

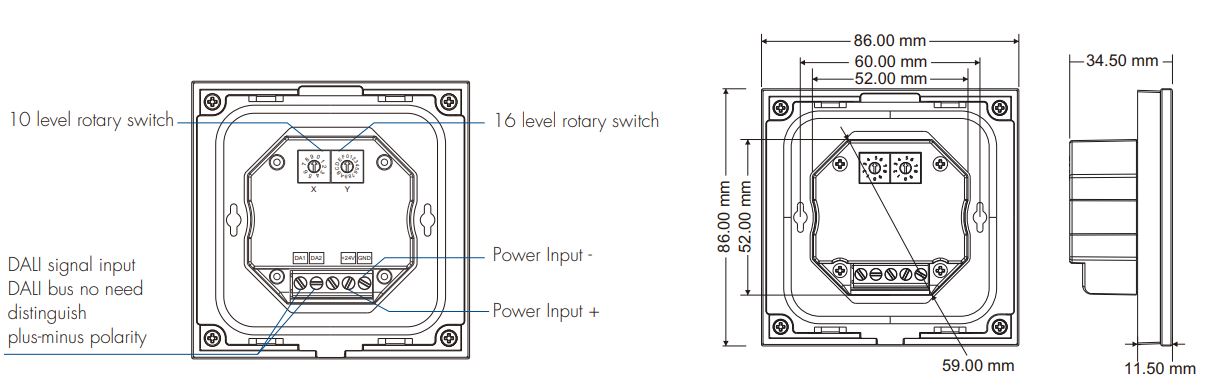

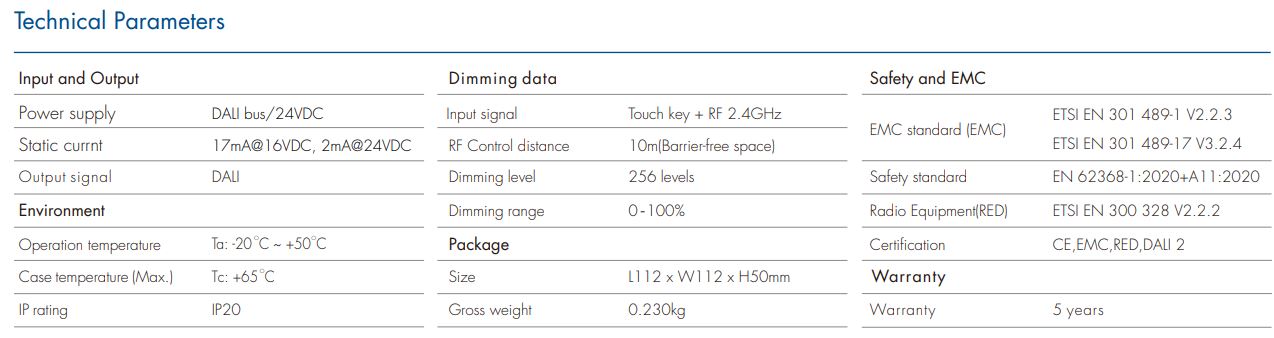

Large image or Download operate manual PDF file to see specification.
