DALI DMX512 Signal Converter for Dali System DALI dimmer

(image for) DALI DMX512 Signal Converter for Dali System DALI dimmer
DALI DMX512 Signal Converter for Dali System DALI dimmer
(image for) DALI DMX512 Signal Converter for Dali System DALI dimmer
DALI DMX512 Signal Converter for Dali System DALI dimmer
(image for) DALI DMX512 Signal Converter for Dali System DALI dimmer
DALI DMX512 Signal Converter for Dali System DALI dimmer
  • Model: DALI DMX512 converte-SZPNR
  • Shipping Weight: 0.5 lbs

(image for) Ask a Question

$121.00

Add to Cart:

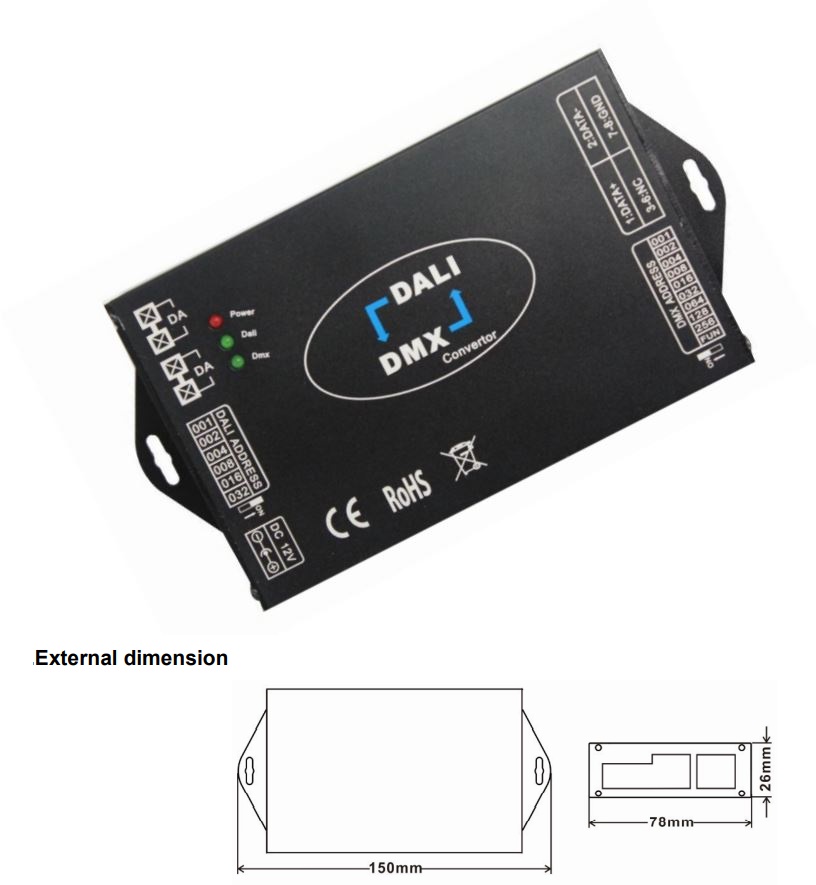

DALI DMX512 Signal Converter
DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting control  protocol BUS, which adopt to Manchester codes of digital transmission, with a whole and grouping dimming, addressing dimming, inquire lamps and lanterns sates, and other powerful dimming function. Compared with the 0-10V analogue dimming, it’s more precise dimming, addressable, stable, focus control, easy to installation and so on.
DMX512 is first by USITT (American theater technology association) develop and become from the console with standard digital interface control dimmers way. It has simple, reliable, flexible features.

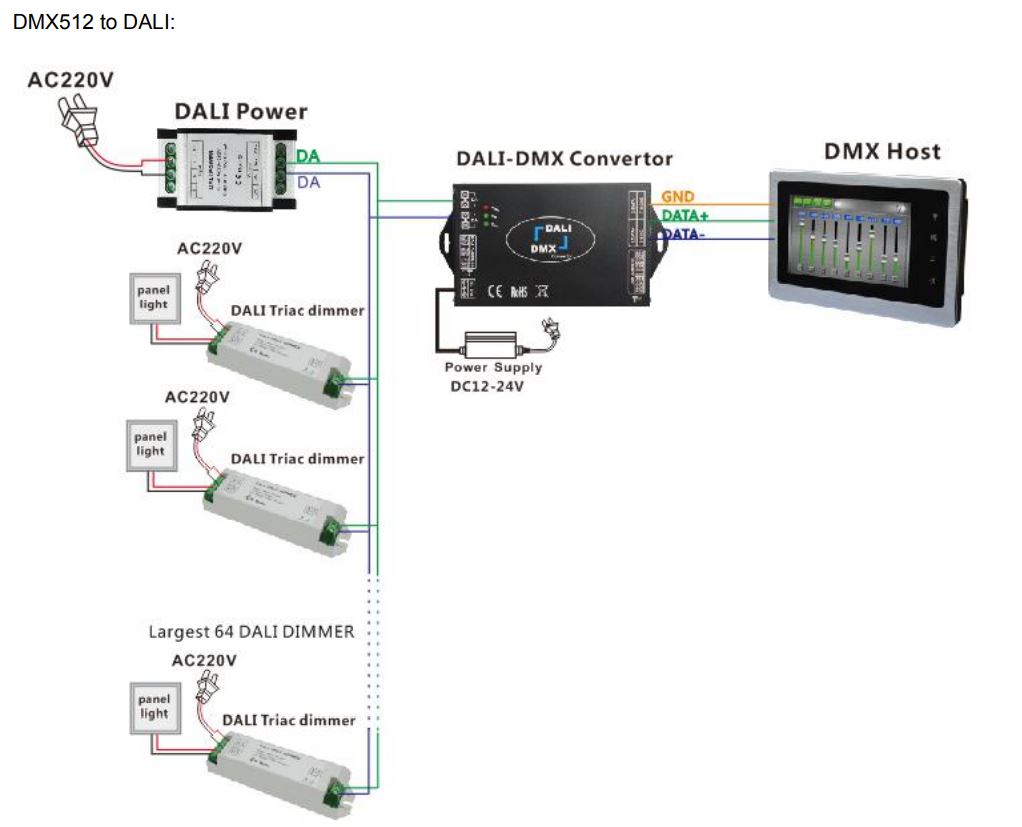

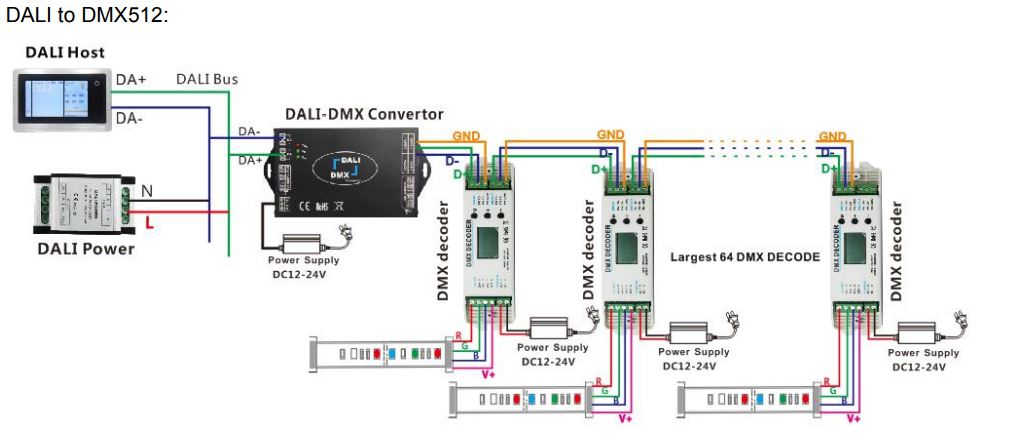

The product can achieve conversion between standard IEC62386 DALI dimming signal and widely used DMX-512 standard signal, realize DMX module control by DALI master, and also can realize DALI device control by DMX master, realize 2 kinds protocol seamless transition.

Features
? Support DMX512 to DALI / DALI to DMX512 signal conversion;
? Support DIP switch selecting DMX initial address;
? Support DIP switch selecting number of DALI channel;
? Supports maximum 64 DALI signal outputs;
? Support group control and scene control of DALI device, the function is effective under mode of
DALI to DMX signal.

Technical parameters
3.1 Working temperature: -20-60?
3.2 Supply voltage: DC12V-48V
3.3 Input signal: DALI/DMX512
3.4 Output signal: DMX512/DALI
3.5 Statical power consumption: <1W
3.6 Connection mode: 4pin green connection pillar for DALI signal,

Indicator light Specification
Power: power indicator light, long light on behalf of the controller access to the power supply polarity is correct, work normally; off on behalf of the power reverse or the controller is not working properly.
DALI: DALI indicator light, flicker on behalf of the data being converted, long light representative no data conversion, representing no DALI signal access.
DMX: DMX indicator light, flicker on behalf of the data being converted, long light representative no data conversion.

DIP Switch Specification
DALI address: 6 dial switches, used to set the DALI channel output. For example, if you set all the dial codes to OFF, it can realize DALI control of A0 address. If you set 001 to ON and the other dial codes set to OFF, it can achieve DALI control of A0 and A1 addresses. To control 64 channels Of the DALI equipment, the six DIP switches are set to ON, A0 - A63 to achieve a total of 64 addresses DALI control.

Note 1: DMX address: 10 dial switches, 10th to lower ADDRESS, and so on.
Fun: FUN is used to switch the conversion mode, OFF is DALI to DMX512, ON is DMX512-DALI.
001-256 dial Code Used to set the start address of the DMX signal. DMX minimum starting address is
1. For example: when the DIP switch is OFF, the DMX start address is 1; when the DIP switch is set to ON, and the other is OFF, the DMX start address is 1 + 1, which is 2; when all the DIP switches When set to ON, the starting address is 511 + 1, which is 512. (Note 2)
Note 1: DALI devices address A0 to A63, a total of 64 device addresses;
Note 2: DMX channel address is 1 to 512, a total of 512 channel address;
