Midget flange led replacement parts T1 Midget flange SX4S based lamps compare with T1 3/4 Midget flange SX6S based lamps
What are difference of Midget Flange base ( SX6S base ) bulbs, Sub-Midget Flange Base bulbs also known as SX4S Bases and Micro-Midget Flange Base Bulbs known as SX3S Bases?

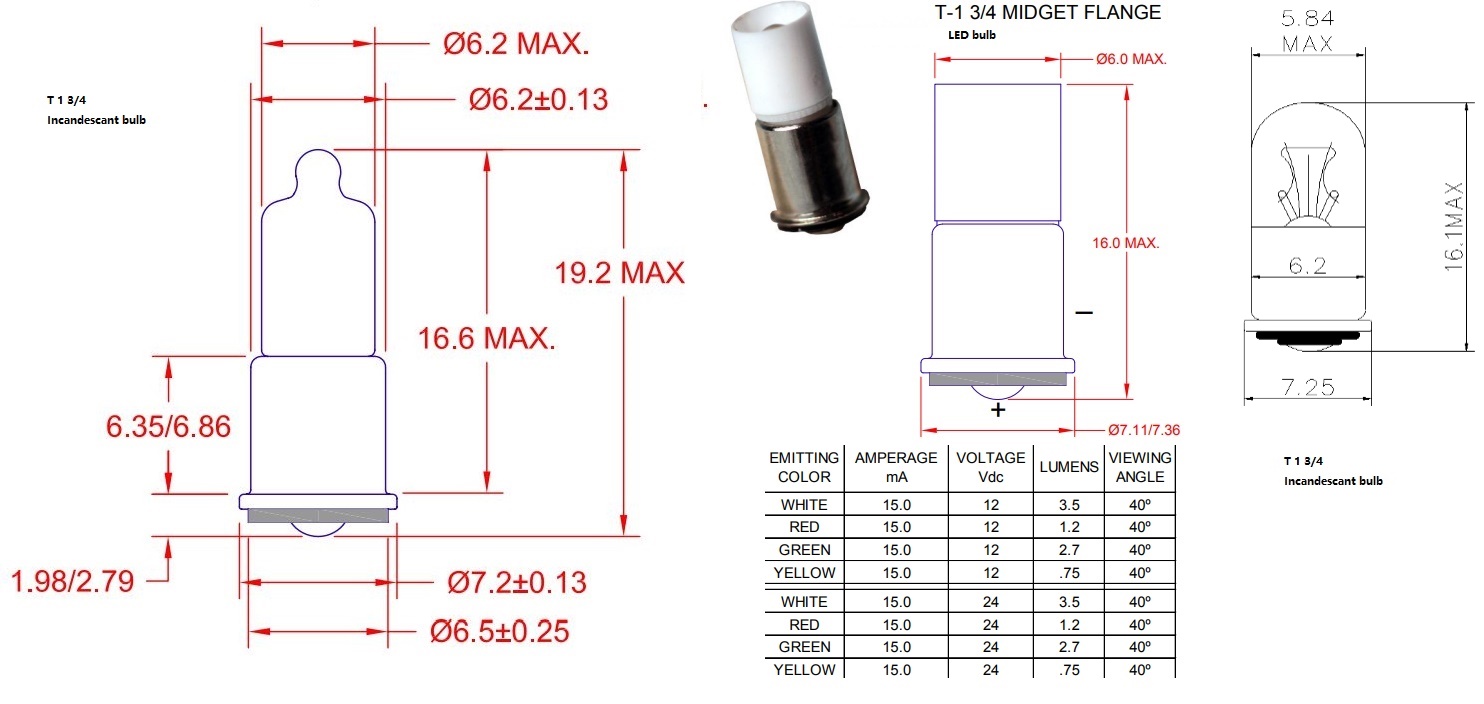

The midget light bulbs have 3 kinds base SX6S, SX4S, SX3S. We supply T 1 3/4 Midget Flange SX6S based LED Bulb (MF6 LED bulb) Direct replacement for incandescent bulb: GE 327, 328, 330, 332, 345, 349, 350, 356, 377, 380, 381, 382, 387, 394, 8918. Also Avaliable are T1 Miniature LED bulb #22 #32 #718 #685 #682 #8022 #7234, 28V 6839 bulb led replacement Sub-Midget Flange Base bulbs (MF4 LED bulb), And supply SX4S Bases and Micro-Midget Flange Base Bulbs (MF3 LED bulb) known as SX3S Bases. Midget flange based lamps mate with industry standard sockets. Below image show you MF6 Incandescent bulb compare with MF6 LED bulb.
Midget light bulbs LED instrument panel lights (Midget Flange led bulbs) has different operation voltage for example 3V, 4.5 Volt, 5V, 6 Volt, 12 Volt, 14V, 18V, 28V. LED instrument panel bulbs. LED light bulbs. LED panel bulbs. LEDs. LED instrument panel bulbs. LEDs. Instrument panel lights can be made with Midget Flange lamps. These lamps can be used in conjunction with many low-voltage lighting options. You can also purchase compatible colored filters, Yellow on dashboard for instrument cluster light bulbs, green on dashboard for the light symbol, Instrument Panel Gauge Led Bulbs.

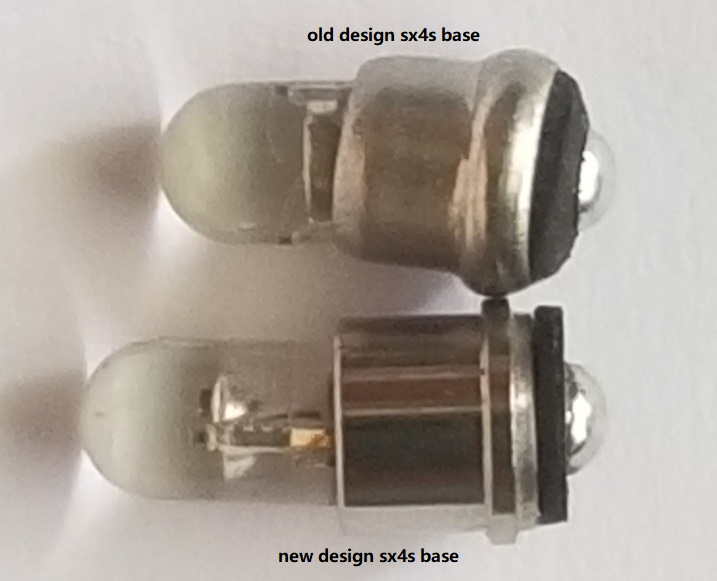

Buy T1 Midget flange with SX4S based lamps from our online store which Miniature Bulb with SUB Midget Flange Base ( SX4s Base ) mate with industry standard sockets. We have 2 types different SX4S Midget flange base, See compation photo below.
All these 2 type SX4S base offered in various voltage and brightness levels and sizes, the flange based lamps are ideal for a wide range of low voltage lighting requirements and compatible colored filters are also offered. This led bulb can be as replacement of below bulb part number:
DC 5V Midget Flange Based #8022, #7234, #682, $685, $6180, #714, #718. The current of our led bulb just 3 mA when 5V operation
DC 10V Midget Flange Based #7240,
DC 12V Midget Flange Based #32. The current of our led bulb just 6 mA when 12V operation
DC 14V Midget Flange Based #22, #8112
DC 18V Midget Flange Based #7241

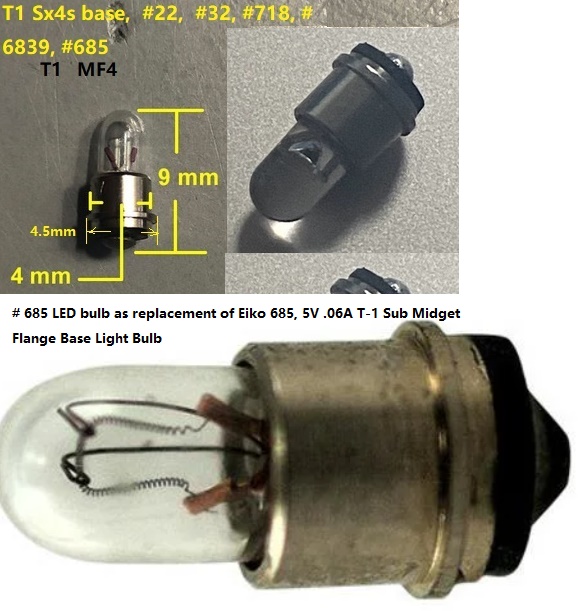

DC 28V Midget Flange Based #6839, 28V 6839 bulb led replacement, The current of our led bulb just 12 mA when 28V operation. As replacement of Eiko 6839 28V .024A T1 SX4S Mini Flanged Lamp, GE 6839 Sub Midget Flange Incandescent T1 28V 0.024A SX4S, 6839, 70902-01984-101, Aircraft Miniature Light Bulb Lamp.
Below midget light bulbs parts number list are T1 Midget flange based bulb types varieties that are Popular Bulbs in Bold:
Part no. Part Name Voltage Amperage Part Size MSCP Comments
22 T-1 Midget Flanged Based 14V 14V 0.04A T-1 0.15 indicator & automotive
6180 T-1 Midget Flanged Based 5V 5V 0.06A T-1 0.15 C-2R Filament
682 T-1 Midget Flanged Based 5V 5V 0.06A T-1 0.03 C-2R Filament
6839 T-1 Midget Flanged Based 28V 28V 0.024A T-1 0.15 C-2R Filament
685 T-1 Midget Flanged Based 5V 5V 0.06A T-1 0.05 C-2R Filament
714 T-1 Midget Flanged Based 5V 5V 0 .075A T-1 0.09 C-2R Filament
718 T-1 Midget Flanged Based 5V 5V 0.115A T-1 0.15 C-2R Filament
7234 T-1 Midget Flanged Based 5V 5V 0.03A T-1 0.03 C-2R Filament
7240 T-1 Midget Flanged Based 10V 10V 0.027A T-1 0.1 C-2F Filament
7241 T-1 Midget Flanged Based 18V 18V 0.026A T-1 0.15 C-2F Filament
8022 T-1 Midget Flanged Based 5V 5V 0.021A T-1 0 .034 C-2R Filament
8102 T-1 Midget Flanged Based 1.5V 1.5V 0.075A T-1 0.03 C-2R Filament
8112 T-1 Midget Flanged Based 14V 14V 0.065A T-1 0.15 C-2F Filament
CF16 T-1 Midget Flanged Based 28V 28V 0.016A T-1 0.025 C-2F Filament
CF23 T-1 Midget Flanged Based 5V 5V 0 .02A T-1 0.2 C-2R Filament

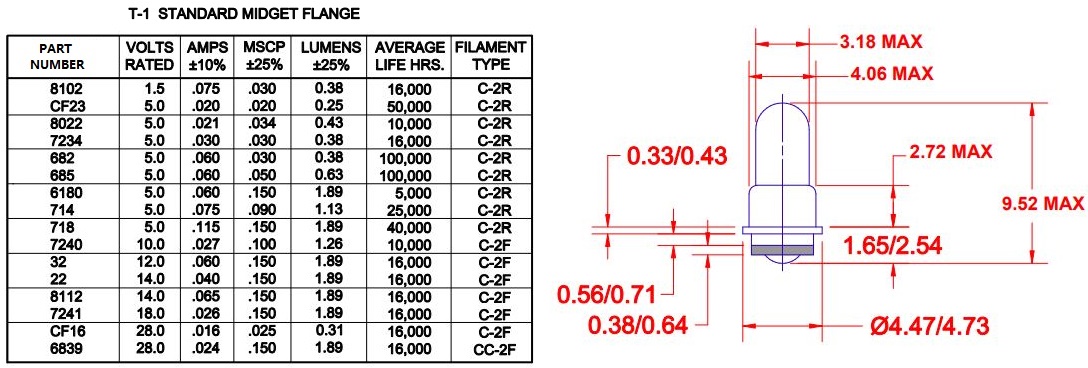

Below image show you the C-2R filament size, This midget light bulbs with 360 degree beam. Buy led replacement from here link T1 Midget flange with SX4S based lamps

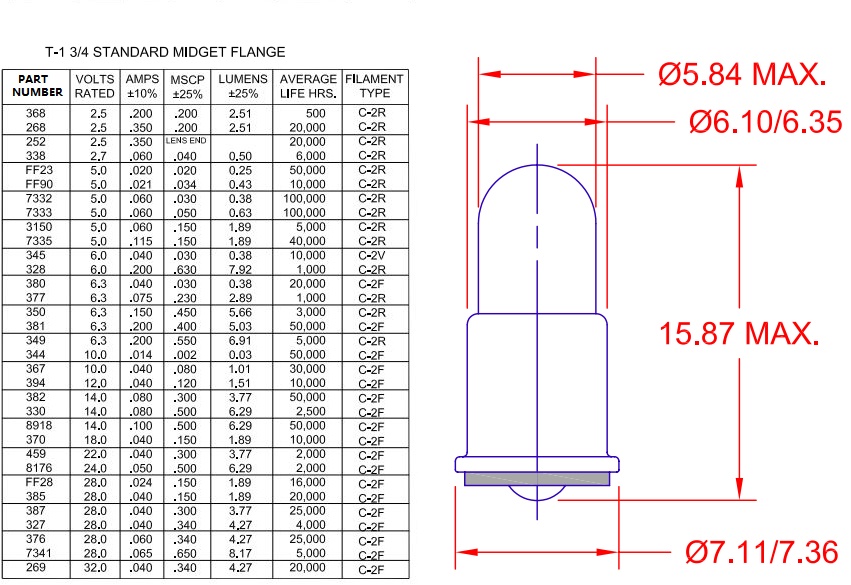

Below image show you the T 1 3/4 MF6 LED bulb C-2F filament size, DC 28V GE 327 bulb led replacement, GE 387 bulb led replacement, This midget light bulbs with 40 degree or 120 degree beam. Buy led replacement from here link T1 3/4 Midget flange with SX6S based lamps, Also available Flat Top SX6S base Indicators led bulb replace multiple Midget Flanged SX6S Base Indicator lamp. DC 5V, 6V, 12V, 24V, 28V, 36V, 48V, 60V. Yellow light on dashboard, Green light symbol on dashboard.
Below image is T 1 3/4 Midget Flange SX6S based LED Bulb (MF6 LED bulb) with 360 degree beam, Buy T1 3/4 Miniature Bulb with Midget Flange Base from our online store.
MF6 Midget Flange SX6S Miniature LED indicator aircraft lighting
T 1 3/4 Midget Flange LED Bulb with SX6S base Direct replacement for: 327, 328, 330, 332, 345, 349, 350, 356, 377, 380, 381, 382, 387, 394,...
Below midget light bulbs parts number list are T1 3/4 Midget flange based bulb types varieties that are Popular Bulbs in Bold:
Part no. Part Name Voltage Amperage Part Size MSCP Comments
252 T-1 3/4 Midget Flanged Based 2.5V 2.5V 0.35A T-1 3/4 C-2R Filament
3150 T-1 3/4 Midget Flanged Based 5V 5V 0.06A T-1 3/4 0.15 C-2R Filament
327 T-1 3/4 Midget Flanged Based 28V 28V 0.04A T-1 3/4 0.34 C-2F Filament
328 T-1 3/4 Midget Flanged Based 6V 6V 0.2A T-1 3/4 0.63 Vintage audio bulb
330 T-1 3/4 Midget Flanged Based 14V 14V .08A T-1 3/4 0.5 C-2F Filament
338 T-1 3/4 Midget Flanged Based 2.7V 2.7V 0.06A T-1 3/4 0.04 C-2R Filament
345 T-1 3/4 Midget Flanged Based 6V 6V 0.04A T-1 3/4 0.03 C-2V Filament
349 T-1 3/4 Midget Flanged Based 6.3V 6V 0.2A T-1 3/4 0.55 C-2R Filament
350 T-1 3/4 Midget Flanged Based 28V 6.3V .15A T-1 3/4 .45 Panel Indicator/Automotive Lamp
367 T-1 3/4 Midget Flanged Based 10V 10V 0.04A T-1 3/4 0.08 C-2F Filament
368 T-1 3/4 Midget Flanged Based 2.5V 2.5V 0.2A T-1 3/4 C-2F Filament
370 T-1 3/4 Midget Flanged Based 18V 18V 0.04A T-1 3/4 0.15 C-2F Filament
376 T-1 3/4 Midget Flanged Based 28V 28V 0.06A T-1 3/4 0.34 C-2F Filament
377 T-1 3/4 Midget Flanged Based 6.3V 6.3V 0.07A T-1 3/4 0.23 C-2R Filament
380 T-1 3/4 Midget Flanged Based 6.3V 6.3V 0.04A T-1 3/4 .02 C-2F Filament
381 T-1 3/4 Midget Flanged Based 6.3V 6.3V 0.2A T-1 3/4 0.4 C-2F Filament
382 T-1 3/4 Midget Flanged Based 14V 14V 0.08A T-1 3/4 0.3 C-2F Filament
385 T-1 3/4 Midget Flanged Based 28V 28V .04A T-1 3/4 .15 C-2F Filament
387 T-1 3/4 Midget Flanged Based 28V 28V .04A T-1 3/4 .3 Vintage audio bulb
394 T-1 3/4 Midget Flanged Based 28V 12V .04A T-1 3/4 .12 C-2F Filament
459 T-1 3/4 Midget Flanged Based 28V 22V .04A T-1 3/4 .3 C-2F Filament
LE-MF-12W T-1 3/4 Flange Base LED 12V White 12V 0.015A T-1 3/4 LED Replacement for 327, 385, 387, 7341
LE-MF-24G T-1 3/4 Flange Base LED 24V Green 24V 0.015A T-1 3/4 Green Flange Indicator LED
LE-MF-24R T-1 3/4 Flange Base LED 24V Red 24V 0.015A T-1 3/4 Red Indicator LED
LE-MF-12W T-1 3/4 Flange Base LED 12V White 12V 0.015A T-1 3/4 LED Replacement for 327, 385, 387, 7341
7332 T-1 3/4 Midget Flanged Based 5V 5V 0.06A T-1 3/4 0.03 C-2R Filament
7333 T-1 3/4 Midget Flanged Based 5V 5V .06A T-1 3/4 .05 C-2R Filament
7335 T-1 3/4 Midget Flanged Based 5V 5V .11A T-1 3/4 .15 C-2R Filament
737 T-1 1/4 Midget Flanged Based 5V 28V .05A T-1 1/4 .3 C-2F Filament
8628 T-1 1/4 Midget Flanged Based 6V 6V 0.2A T-1 1/4 0.63 C-2R Filament
8918 T-1 3/4 Midget Flanged Based 14V 14V .1A T-1 3/4 .5 C-2F Filament
C7A T-1 3/4 Midget Flange - NE2D Equivalent T-1 3/4 Voltage Circuit 105 - 125
C9A T-1 3/4 Midget Flange - NE2J Equivalent T-1 3/4 Voltage Circuit 105-125
8176 T-1 3/4 Midget Flange Base Lamp 24V 24V .05A T-1 3/4 .5 C-2F Filament
387 vs 327 bulb, 387 led bulb vs 327 led bulb: Both have same base of SX6S and same operation voltage 28V, Both have same C-2F Filament, So the 327 bulb led replacement is same as 387 bulb led replacement

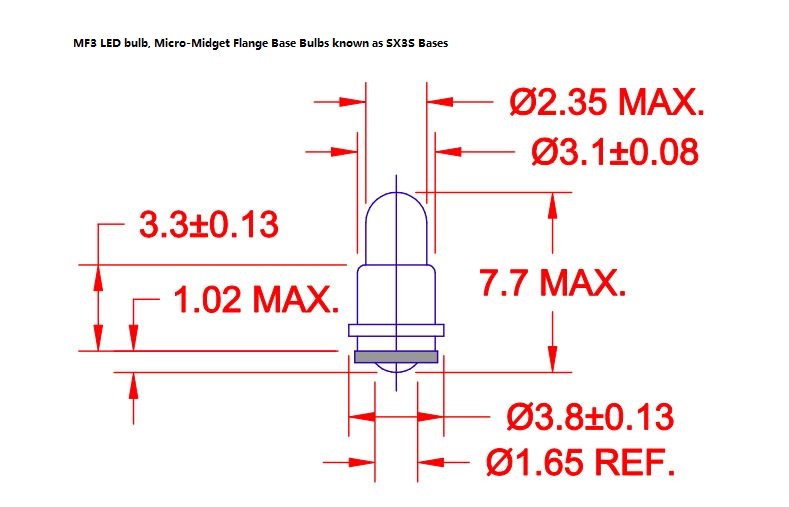

MF3 LED bulb, T 3/4 Micro-Midget Flange Base Bulbs known as SX3S Bases. Midget flange based lamps mate with industry standard sockets.
Part no. Part Name Voltage Amperage Part Size MSCP Comments
8270 T-3/4 Midget Flanged Based 5V 5V 0.115A T-3/4 0.15 C-2R Filament
Buy different midget light bulbs from us:
T 1 3/4 Midget Flange LED Bulb with SX6S base Direct replacement for: 327, 328, 330, 332, 345, 349, 350, 356, 377, 380, 381, 382, 387, 394,...
T1 Miniature LED bulb #22 #32 #718 #685 #682 #8022 #7234, 28V 6839 bulb led replacement
DC dimmable Miniature led bulb and PWM Dimmable Miniature led bulb can be as replacement of below bulb number: Miniature part number #6839...
T-1 MF4 Midget Flange LED bulb with SX4S Sub-Midget Flanged. This Miniature led bulb can be as replacement of below bulb number: #22,...
Midget Flange SX6S base LED bulbs, This LED bulb is about 40 degree beam. 3 Volt LED light bulbs, 4.5 Volt LED light bulbs, 6 Volt LED light bulbs ,...
This Miniature Led bulb with Sx4s Midget Flange Base can serve as an equivalent replacement of below bulb part numbers: #22 #32 #718 #6839 #682 and...

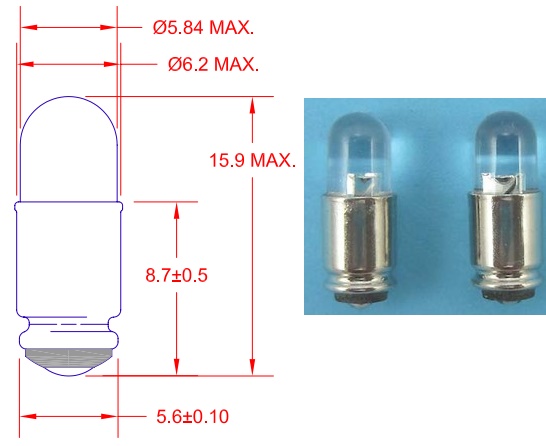

MG6 LED Midget Groove #7348 #388 #334 #7355 Miniature Indicator
Miniature Indicator Light Bulb MG6 LED Instrument bulb MG6 LED bulb, 1 3/4 Midget Groove Small Indicator LED Light Bulbs, Part number #7348...
Midget Flange SX6S base LED bulb 3V LED 4.5V LED 6V 12V 24V, 28V ge 327 bulb led replacement, ge 327 bulb led replacement
