Grade B LED Tube 120cm/4FT 18 Watt led fluorescent Specification, Buy this cheap LED fluorescent tube
1. Features of products:
1.Extremely energy efficient reducing the amount of CO2 emissions being emitted Environmentally Friendly
2.Solid State High Shock/Vibration Resistant
3.No disposal or landfill issues
4.No Maintenance Costs ,No danger of broken glass
5.No Mercury and other Hazardous Materials, fully ROHS - Compliant
6.No UV - insects are not attracted to the light
7.Energy saving 70-80% compared to normal fluorescent lamps
8.Adopt high bright ,low optical decay good quality SMD3528 led chips, ensure Low assuption,very little heat emit
9.Fine-new appearance design, give you a feeling of harmonious and comfortable,Perfect design of diffusing heat

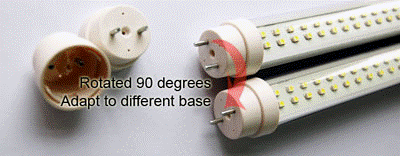

10.Connecter rotate 90 degree, fit for different direction fitting.
11.Easy and flexible to install with safe package
2. Certificate:
CE , ROHS , FCC, ETL

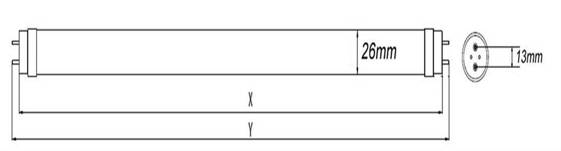

3. Appearance and dimension:
|
|
||
|
Y |
1212±0.5 mm |
|
|
X |
1197.6±0.5 mm |
|
|
|
|
|
|
|
|
|
Frosted Cover |
Blur Cover |
|
|
|
|
Wave Cover |
Clear Cover |
4. Product patameters:
|
T8 LED tube 120cm/4FT 18W Parameters |
||
|
Input voltage |
AC 85V-277V |
|
|
Work frequency |
50/60Hz |
|
|
Beam angle |
120° |
|
|
Working environment |
-40℃~65℃ |
|
|
Power factor |
≥ 0.90 (Non-Isolated Source) |
|
|
≥ 0.95 (Isolated Source) |
||
|
Efficiency |
≥90℅ |
|
|
Type of LED |
SMD 3528 Epistar |
|
|
Wattage |
18 -19 W |
|
|
LED Qty |
286 pcs |
|
|
Lumen
|
Clear Cover |
1500- 1630 LM |
|
Frosted Cover |
1350- 1460 LM |
|
|
Blur Cover |
1450- 1560 LM |
|
|
Wave Cover |
1500- 1630 LM |
|
|
Light Efficiency |
70-90 LM/W |
|
|
CRI |
≥70Ra |
|
|
Life Span |
More than 50,000 Hours |
|
|
IP Grade |
IP50 |
|
|
Lamp Base |
G13 |
|
|
Cover |
PC |
|
|
Back |
Aluminium alloy |
|
|
Package |
20pcs/carton |
|
5. LED chip Parameters:
|
LED Chip Parameters |
|
|
Rated working current |
20MA |
|
Actual working current |
18.5MA~19.5MA |
|
Color temp |
According to Customers requriement |
|
Beam angle |
120° |
6. Electrical wiring schematics:
How to mount the LED fluorescent tube light:
Reconnect the wire, bypass the ballast and remove the starter within the lamp bracket before mounting on the bracket to avoid the glare and negative impact on LED tube light and its efficiency.
|
|
|
Wire diagram |
7. Scope of use:
Be suit for home lighting ,decoration,drawing room,bedroom,WC,
Balcony,Kitchen,Yard,Sight lighting etc.
8. Remarks:
1. Do not use for urgency exit lighting
2. Should be stored on dry ,safe and ventilated condition
3. 3 years of warranty
